Macnaught

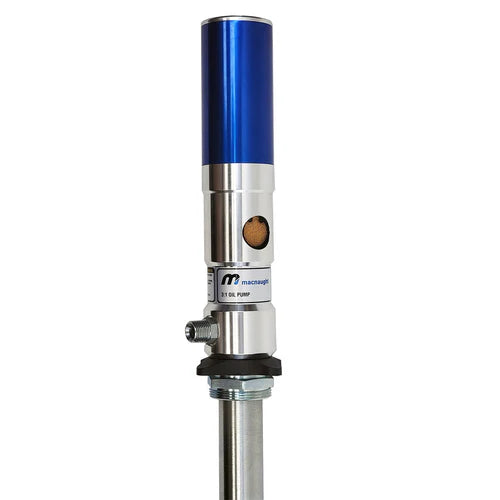

M3 Series 3:1 – 16 Gallon Air Operated Oil Pump

M3 Series 3:1 – 16 Gallon Air Operated Oil Pump

Macnaught M3 Air Operated Oil Pump Specifications

Model number OP163-1-001
Pump ratio 3:1 ratio
Air Inlet 30 – 150 PSI / 207-1035 kPa
Max Fluid Pressure 450 PSI / 3100 kPa
Air Motor Diameter 2 1/2 Inch
Air Consumption 3.6 CFM@ 150 PSI / 1035 kPa
Free Flow 5.25 GPM / 20 LPM
Suction Tube Diameter 1 5/8 Inch
Suction Tube Length 28¾"
Air Inlet 1/4 Inch FNPT
Oil Outlet 1/2 Inch MNPT
Warranty 3 years


Instruction Manual: PDF

Features & Benefits:

• Double Acting, Highly Efficient & Light Weight
• Suitable for all oils up to SAE 140W
• Waste Oil, Hydraulic oil, Coolant and ATF compatible
• Each M3 Oil Pump comes with Suction Tube & Filter
• Adjustable 2 inch Bung Adapter
• Minimal Internal Pump Component Design
• 3 Year Warranty

Regular price $319.00 USD
Regular price Sale price $319.00 USD
Sale Sold out
View full details
